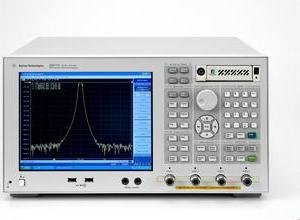

Keysight是德E5071C ENA 矢量网络分析仪285

主要特性和功能蒋

?

9 kHz 至 4.5/6.5/8.5/14/20 GHz

?

?

2 或 4 端口，50 Ω，S 参数测试仪

?

?

提供 130 dB 宽广的动态范围、8 ms 快速测量速度和 0.005 dB/℃ 温度稳定度，可改善测量精度、提高产品良率并增加设计裕量

?

?

增强时域分析选件可对高速串行互连进行全面表征，增强您对设计的信心

?

?

所有选件均可升级，保护您的投资

?

?

?

选件

Additional features

E5071C-010 时域分析

E5071C-790 测量向导助手（MWA）软件

E5071C-008 频率偏置模式

E5071C-TDR E5071C-TDR 增强型时域分析选件

Timebase stability

E5071C-UNQ Standard stability timebase

E5071C-1E5 High stability timebase

Calibration documentation

E5071C-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)

E5071C-A6J ANSI Z540-1-1994 Calibration

Test set

E5071C-280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

E5071C-285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

E5071C-480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees

E5071C-485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees

E5071C-240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

E5071C-245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

E5071C-440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees

E5071C-2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees

E5071C-445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees

E5071C-4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees

E5071C-4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees

E5071C-465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

E5071C-460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

E5071C-2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees

E5071C-265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees

E5071C-260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees

Hard disk drive options

E5071C-017 Removable Data Storage

E5071C-019 Standard Data Storage

Accessories

E5071C-1CM Rack mount kit

E5071C-1CN Front handle kit

E5071C-1CP Rack mount and front handle kit

E5071C-810 Add keyboard

E5071C-820 Add mouse
