电线电缆网 > 柔性线缆 > 生产及供应澳洲拖链电缆 AS/NZS 2802 441.6 240SQMM2（完整版）

生产及供应澳洲拖链电缆 AS/NZS 2802 441.6 240SQMM2 - 无图版

brucejin88 --- 2020-03-08 11:02:43

1

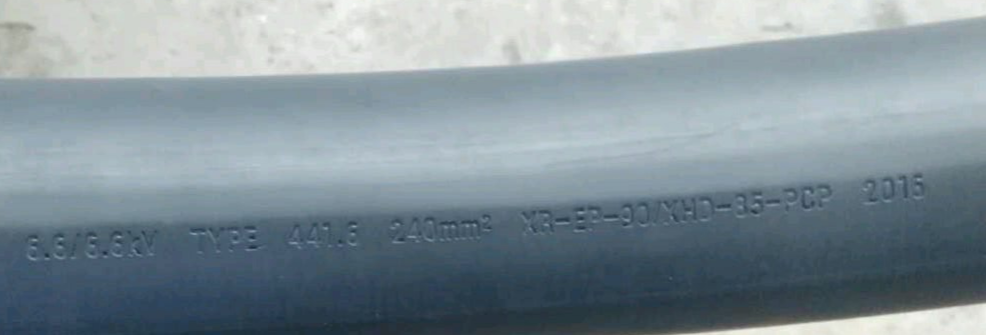

标准要求外护印字为压印，非激光喷印 Pressed Lettering.  供货力拓。欢迎合作



游客 --- 2020-03-08 15:09:14

2

brucejin88 --- 2020-03-08 17:27:58

3

lease pay attention to following checking points:

1.       Outer sheath material: XHD-850-PCP, could you please help to confirm if  the XHD-85-PCP is available in your factory. And can it meet all the requirements of AS3808 as attached XHD-85-PCP showing?



2.       Cradle separator: Please help to check if your cable will have the cradle separator as attached semi conductive cradle showing.



3.       The pressed lettering on external cable, as required by AS2802 we need pressed lettering, please check page 51 of attached ASNZS2802 for Internal and external marking.



4.       Copper wire size and weight, Please check attached Type 441.6 6.6Kv for the qty and sqm of power conductor, earth conductor and pilot conductor. Please work out the cooper wire’s for this cable in one meter.



5.        Insulation material, our required insulation material is XR-EP-90 please help to check that as well.



6.       The Maximum continuous operating temperature: what it will be? Can it be 90℃？

lanfeifan --- 2020-03-09 08:43:12

4

brucejin88 --- 2020-03-09 11:29:34

5

lanfeifan:

你好： 客气， 大家共同探讨，共同进步

bl3725 --- 2021-09-22 12:15:33

6

国内可以使用的材料很多，以前Nexans Olex 工作的基本所有的电缆，我们一年内都开发成功了。都是IEC 体系，比UL难度小多了。
SHKAIBO --- 2023-06-21 09:40:14

7

你好，欢迎来电咨询，上海凯波，陈经理，18689315071
