电线电缆网 > 电力电缆 > 为何中压力缆绝缘厚度加133%?(完整版)
为何中压力缆绝缘厚度加133%? - 无图版
99号 --- 2006-08-25 16:41:20
1
大漠孤狼008 --- 2006-08-26 15:20:11
2
我发表一点个人看法(仅供参考):
1 用户想提高电缆绝缘的安全裕度.
2 在地下敷设如果是垂直敷设(例如煤矿)有可能用增加厚度来增强其抗拉性能.
注:怎么不问一下用户呢,问到了发贴告诉我,我也学习一下.
zxg133 --- 2006-08-27 15:42:40
3
具不完全了解,这是国外的一些特殊要求的线,我也是略知一二:
关于百分比的问题结实如下:国外要求的100%的绝缘厚度其实就是国内4.5的厚度,还有的要求是120%,133%等等的,这好象是线路规定的等级的大小不同所制。
99号 --- 2006-08-31 07:58:03
4
bakerchen --- 2006-10-01 09:49:10
5
我看这主要是用户使用的系统有关系,由于各国的电压系统不同引起的.IEC60502中规定了A\B\C三类系统,其中C类要求最高,用户要求在8.7/10KV基础上加133%,刚好接近C类的12/20KV等级.这是我的看法不知当否?
ccjzw --- 2006-10-21 08:38:05
6
xinpeng --- 2006-10-22 11:01:07
7
nanwangyu --- 2006-10-22 12:50:38
8
xinpeng:同意楼上说法.但我建议最好看用户按什么标准要求的.看下该标准和GB要求的绝缘厚度是否相同再说吧.
也可能跟国外电力系统频率有关,我国的都是50HZ,而国外的就不一样,有60HZ的或更高的,所以对电缆的要求也会提高!
youfri --- 2006-10-22 13:25:21
9
频率不同,电缆厚度不会相差这么大。
lj720410 --- 2006-10-23 15:40:54
10
这跟电压系统,类似IEC60502中规定了A\B\C三类系统,其中C类要求最高,绝缘厚度就厚。
给大家一个15KV系统的结构参数实例。
15kv 100% Insulation Levels1/C Aluminum, EPR Insulation,1/3 Neutral and Full Neutral, Encapsulating Polyethylene Jacket. SIZE SIZE SIZE SIZE1/3 NEUTRAL <DIV align=right>15KV 100% INSULATION LEVEL </DIV> Conductors Insulation Thickness (MILS) Insulation OD Inches 1/3 Neutral Jacket Thickness (MILS) Approx. Cable OD Inches Approx. Net Wt. Lbs/M Ft. Ampacity?/b>
(AWG or kcm)Number
of StrandsNo. of Wires AWG Condition A Condition B 2 7 175 0.70 6 14 50 1.04 402 125 155 1 19 175 0.74 6 14 50 1.08 435 140 175 1/0 19 175 0.78 6 14 50 1.12 475 160 200 2/0 19 175 0.83 7 14 50 1.17 534 185 225 3/0 19 175 0.88 9 14 50 1.22 615 210 260 4/0 19 175 0.93 11 14 50 1.28 707 235 290 250 37 175 0.98 13 14 50 1.33 784 260 320 350 37 175 1.08 18 14 50 1.46 1009 310 385 500 37 175 1.21 16 12 50 1.63 1305 375 460 750 61 175 1.39 15 10 80 1.93 1839 455 555 1000 61 175 1.54 16 9 80 2.15 2368 525 620 FULL NEUTRAL <DIV align=right>15KV 100% INSULATION LEVEL </DIV> Conductors Insulation Thickness (MILS) Insulation OD Inches Full Neutral Jacket Thickness (MILS) Approx. Cable OD Inches Approx. Net Wt. Lbs/M Ft. Ampacity?/b>
(AWG or kcm)Number
of StrandsNo. of Wires AWG Condition A Condition B 2 7 175 0.70 10 14 50 1.04 450 125 155 1 19 175 0.74 13 14 50 1.08 519 140 175 1/0 19 175 0.78 16 14 50 1.12 594 160 200 2/0 19 175 0.83 13 12 50 1.21 699 185 225 3/0 19 175 0.88 16 12 50 1.26 81 210 260 4/0 19 175 0.93 13 10 50 1.36 972 235 290 250 37 175 0.98 16 10 50 1.41 1115 260 320 350 37 175 1.08 16 9 50 1.57 1408 310 385 <DIV align=right></DIV> <DIV align=right>15kv 133% Insulation Levels, 1/C Aluminum, EPR Insulation, 1/3 Neutral and Full Neutral, Encapsulating Plyethylene Jacket.</DIV> 1/3 NEUTRAL <DIV align=right>15KV 133% INSULATION LEVEL </DIV> Conductors Insulation Thickness (MILS) Insulation OD Inches 1/3 Neutral Jacket Thickness (MILS) Approx. Cable OD Inches Approx. Net Wt. Lbs/M Ft. Ampacity?/b>
(AWG or kcm)Number
of StrandsNo. of Wires AWG Condition A Condition B 2 7 220 0.79 6 14 50 1.14 467 125 155 1 19 220 0.83 6 14 50 1.18 503 140 175 1/0 19 220 0.87 6 14 50 1.22 546 160 200 2/0 19 220 0.92 7 14 50 1.26 608 185 225 3/0 19 220 0.97 9 14 50 1.32 692 210 260 4/0 19 220 1.02 11 14 50 1.40 811 235 290 250 37 220 1.07 13 14 50 1.45 892 260 320 350 37 220 1.17 18 14 50 1.56 1104 310 385 500 37 220 1.30 16 12 80 1.79 1473 375 460 750 61 220 1.48 15 10 80 2.02 1960 455 555 1000 61 220 1.63 16 9 80 2.25 2502 525 620 FULL NEUTRAL <DIV align=right>15KV 133% INSULATION LEVEL </DIV> Conductors Insulation Thickness (MILS) Insulation OD Inches Full Neutral Jacket Thickness (MILS) Approx. Cable OD Inches Approx. Net Wt. Lbs/M Ft. Ampacity?/b>
(AWG or kcm)Number
of StrandsNo. of Wires AWG Condition A Condition B 2 7 220 0.79 10 14 50 1.14 515 125 155 1 19 220 0.83 13 14 50 1.18 587 140 175 1/0 19 220 0.87 16 14 50 1.22 665 160 200 2/0 19 220 0.92 13 12 50 1.30 773 185 225 3/0 19 220 0.97 16 12 50 1.35 890 210 260 4/0 19 220 1.02 13 10 50 1.48 1076 235 290 250 37 220 1.07 16 10 50 1.53 1224 260 320 350 37 220 1.17 16 9 50 1.66 1503 310 385
学 --- 2006-10-25 15:05:05
11
hehw --- 2006-11-25 09:01:30
12
lll333 --- 2006-12-02 11:31:56
13
jzligy --- 2006-12-05 11:44:53
14
宝丰电缆 --- 2006-12-22 12:42:28
15
目前我公司为国外用户提供的中压电缆多数标准为12/20KV,有的用户要求铜屏蔽层全部是铜丝!
幸福时刻 --- 2006-12-26 19:17:06
16
跟电缆接地故障时间有关,按照IEC标准,应该是电缆接地的C类系统,A类为100%水平,B类为115%水平,C类为133%水平!
ghjwalsin --- 2007-01-01 14:36:38
17
这是根据电力系统的接地方式对电缆绝缘耐压能力的要求决定的.
碧华 --- 2007-03-15 09:41:32
18
yongyxt --- 2007-03-22 09:10:41
19
Calf --- 2007-03-24 05:11:27
20
Go check the ICEA S-94-649-2004 standard (page 21). For 100% level, cable in this category may be applied where the system is provided with relay protection such that ground faults will be cleared as rapidly as possible, but in any case within 1 minutes. And for 133% level, a little bit longer, but not exceeding 1 hour. Hope it's helpful.
中华 --- 2007-03-29 19:18:54
21
ludiyuanyi --- 2007-04-04 16:44:08
22
guying8 --- 2007-06-27 10:32:52
23
xdifen --- 2007-07-07 13:57:03
24
stonezhao --- 2007-07-12 15:29:48
25
我个人理解, 这是企业标准, 企业所在地的安全试验要求高
yvhkdv --- 2007-08-04 10:12:14
26
上面的绝缘皮厚标准值得借鉴.
pdsdqgy --- 2007-08-14 15:53:41
27
wangfuzhi --- 2007-08-16 12:50:17
28
安全裕度问题,美国标准就是要考核1.33倍电性能。
abel2006 --- 2007-08-19 16:50:53
29
陈果 --- 2007-08-28 17:46:28
30
a57984 --- 2007-11-27 08:37:29
31
defhua --- 2008-01-02 20:09:06
32
sevenllong --- 2008-01-05 10:43:50
33
超导 --- 2008-01-06 15:41:58
34
Betty123 --- 2008-01-16 16:34:05
35
100 Percent Level - Cables in this category may be applied where the system is provided withrelay protection such that ground faults will be cleared as rapidly aspossible, but in any case within 1 minute. While these cables are applicable tothe great majority of cable installations that are on grounded systems, theymay be used also on other systems for which the application of cable isacceptable provided the above clearing requirements are met in completelyde-energizing the faulting section.
Where additional insulation thickness is desired, it shall be the same asfor the 133 percent insulation level.
133 Percent Level - This insulation level corresponds to that formerly designated forungrounded systems. Cables in this category may be applied in situations wherethe clearing time requirements of the 100 percent level category cannot be met,and yet there is adequate assurance that the faulted section will bede-energized in a time not exceeding 1 hour. Also they may be used whenadditional insulation strength over the 100 percent level category isdesirable.
Betty123 --- 2008-01-16 16:56:55
36
zygforce --- 2008-03-03 15:55:30
37
有技术要求,和产品检验规范不就知道了吗?
sevenllong --- 2008-03-08 08:14:43
38
超导 --- 2008-03-18 19:59:17
39
stanly --- 2008-03-24 15:18:26
40
龙散人 --- 2008-04-05 19:28:39
41
国外的系统跟我们不一样,电压等级要求也不一样,所以,他们是根据自己国家的电压等级来要求绝缘厚度的,不用想那么多,不会是为了增加预度的,我们的国标里,留得预度够大的了.
郑州的电缆 --- 2008-04-18 23:27:13
42
hxjun --- 2008-05-10 16:56:18
43
沧海一蛙 --- 2008-05-12 11:14:13
44
我觉得还是系统耐压的问题,可能电压要高一些,相同的电压下,国外的绝缘厚度都要薄一些
居 --- 2008-05-21 14:51:22
45
我认为跟接地系统有关
如果是电阻接地或直接接地用100% 如果是消弧圈接地用133%厚度
个人意见
郑州的电缆 --- 2008-06-10 13:56:01
46
请见如下权威解释:
the cable standards refer to 100%, 133% and 173% insulation levels. the 100% insulation level is suitable for systems which provide immediate isolation when an earth fault occurs. the time limit is 1 minute. for longer period of up to 1 hour, the 133% issulation level is suitable. if a phase is anticipated to remain earthed indefinitely, or presumably for more than 1 hour, the 173% level applies.
可见,133%的绝缘水平,为故障时间为1分至1小时。超过1小时,或时间不确定,当采用173%的绝缘水平。
mmgg8800 --- 2008-06-14 16:45:54
47
qinys --- 2008-06-19 11:49:38
48
这个问题其实看是简单:是国外标准要求的,不过中压电缆的使用环境和高压、低压不同。至于绝缘皮厚要求133%这个数据是一个查考数值。这个是专家提出的数据我们暂时不能改,就用着好了,我个人意见
tw118 --- 2008-07-12 13:26:11
49
奔狼2008 --- 2008-09-20 15:15:39
50
ldyylp --- 2009-03-09 09:13:23
51

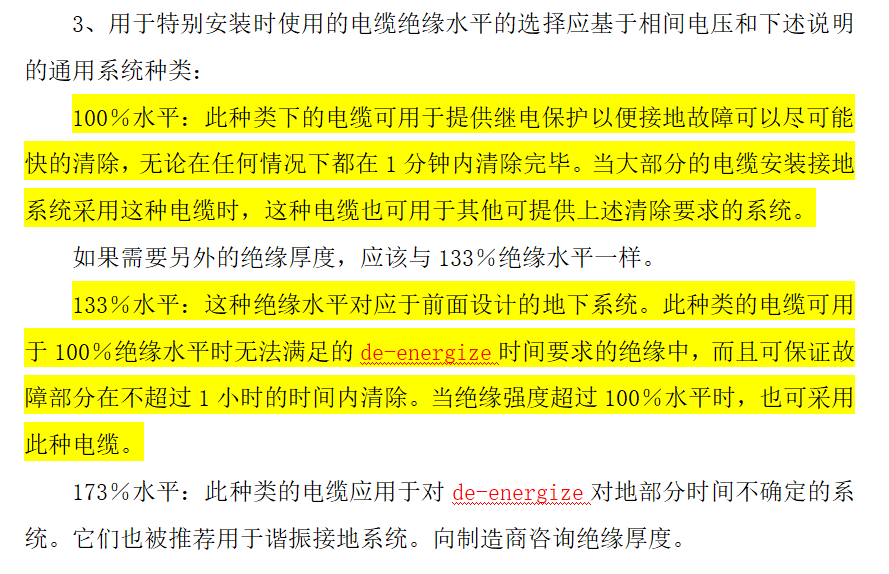

美国标准对3类绝缘水平的规定:
100%绝缘水平:故障切除时间不超过1min,用于直接接地或经小电阻接地系统中
133%绝缘水平:故障切除时间不超过1h,用于直消弧线圈或不接地系统中
173%绝缘水平:故障时间可以任意长,不作具体规定

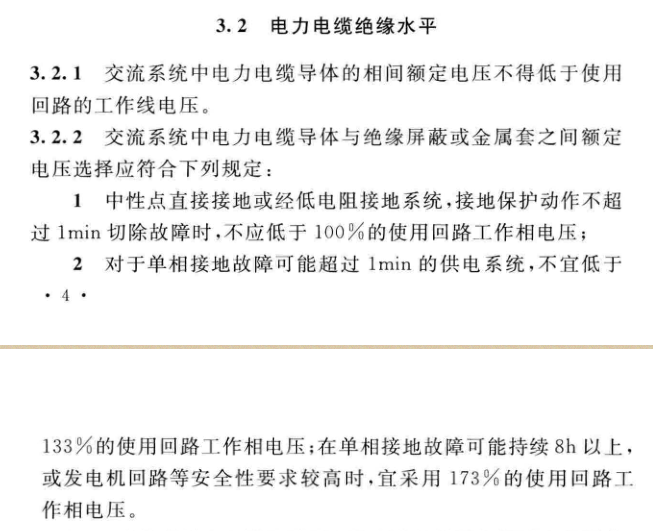

根据美国标准和中国标准的规定,可以看出绝缘采用哪个绝缘水平是和系统的接地方式有关,发生故障时电缆本体承受的电压有关系。
hdpe001 --- 2009-03-09 23:11:04
52
我们有个菲律宾客户专门订这样的线,但都是单芯的10KV和35KV
eastlooker --- 2011-01-12 16:19:59
53
增加133%是按B类系统设计的,这种系统的变压器中性点是经过消弧线圈接地,具有一定的阻抗。在输出端一相接地短路时,变压器中性点向接地一相偏移,但偏移量不大。理论上偏移量介于A类系统(中性点直接接地)和C类系统(中性点不接地)之间,根据消弧线圈的阻抗情况,所以规定设计电压为原额定电压的1.33倍,也就是楼主所述的绝缘厚度要厚上133%。
frankerhu --- 2011-01-13 21:29:03
54
onewindy --- 2013-06-11 21:49:19
55
czb597706 --- 2013-07-22 16:29:09
56
yvhkdv --- 2019-08-02 10:59:18
57
lxg --- 2019-12-11 11:04:18
58
772475238 --- 2020-04-19 11:03:22
59
aliangh --- 2022-03-01 11:27:48
60
删除错误讯息
aliangh --- 2022-03-01 13:39:16
61
修正楼上的
应该要依据美国National Electrical Code的定义(NFPA 70我手上是2017版)
100 Percent Insulation Level.
Cables in this category shall be permitted to be applied where the system is
provided with relay protection such that
ground faults will be cleared
as rapidly as possible but, in any case, within 1 minute. While these cables
are applicable to the great majority of cable
installations that are on
grounded systems, they shall be permitted to be used also on other systems for
which the application of cables is acceptable,
provided the above clearing
requirements are met in completely de-energizing the faulted section.
2 133 Percent Insulation
Level. This insulation level corresponds to that formerly designated for
ungrounded systems. Cables in this category shall be
permitted to be applied in
situations where the clearing time requirements of the 100 percent level
category cannot be met and yet there is adequate
assurance that the faulted
section will be de-energized in a time not exceeding 1 hour. Also, they shall
be permitted to be used in 100 percent insulation
level applications where
additional insulation is desirable.
3 173 Percent Insulation
Level. Cables in this category shall be permitted to be applied under all of
the following conditions:
(1) In industrial
establishments where the conditions of maintenance and supervision ensure that
only qualified persons service the installation
(2) Where the fault clearing
time requirements of the 133 percent level category cannot be met
(3) Where an orderly shutdown
is essential to protect equipment and personnel
(4) There is adequate
assurance that the faulted section will be de-energized in an orderly shutdown
Also, cables with this
insulation thickness shall be permitted to be used in 100 or 133 percent
insulation level applications where additional insulation
strength is desirable.
